multimode Duplex 10 GIGABIT Fiber Optic Patch Cable 3M ST-SC 50/125 Blue
This Fiber Cable is brand new and sealed.
Connector Type: ST - SC
Strand Type: Duplex (2 Strands)
Core Cladding Diameter: Multi Mode 50/125 10Gigabit
Jacketing: Standard Zip Cord
Connectors: Male to Male
Length: 100Meter
Specification:
| Item | Mode Type | PC | UPC | APC |
| Insertion Loss | SM | ≤ 0.25dB | ≤ 025dB | ≤ 0.25dB |
| MM | ≤ 0.30dB | ≤ 0.20dB | N/A |
| Return Loss | SM | ≥ 45dB | ≥ 55dB | ≥ 65dB |
| MM | ≥ 35dB | ≥ 35dB | N/A |
| Repetition Test | Additional Loss≤ 0.1dB, Return Loss Variability< 5dB |
| Temperature Stability(-40~85centigrade Degrees Celsius) | Additional Loss≤ 0.2dB, Return Loss Variability< 5dB |
| Operating Temperature | -40~+75 centigrade Degrees Celsius |
| Storage Temperature | -40~+85 centigrade Degrees Celsius |
| Option: Cable Diameters; 0.9mm, 2.0mm, 3.0mm& others | |
Features:
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
We are the chinese factory to produce cable Products include USB 2.0 &3.0 cable, Apple Accessory cables,HDMI cable, Network cable, Power cable, AV cable,SATA cable, VGA cable, DVI cable,iphone cable, HDMI adapter, HDMI Splitter serials, Chargers, Earphone cable, AC power Adapter, Wiring, etc.
We can promise you good price and good quality !
Website:www.linkelec.com
Email:grace@linkelec.com
Skype: graceduan5
|
|

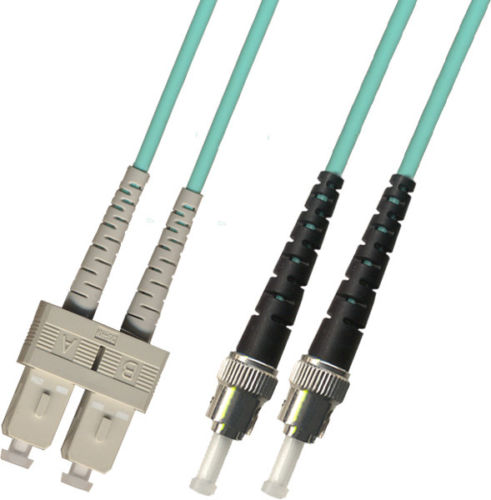

multimode Duplex 10 GIGABIT Fiber Optic Patch Cable 100M ST-SC 50/125 Blue Images
|
